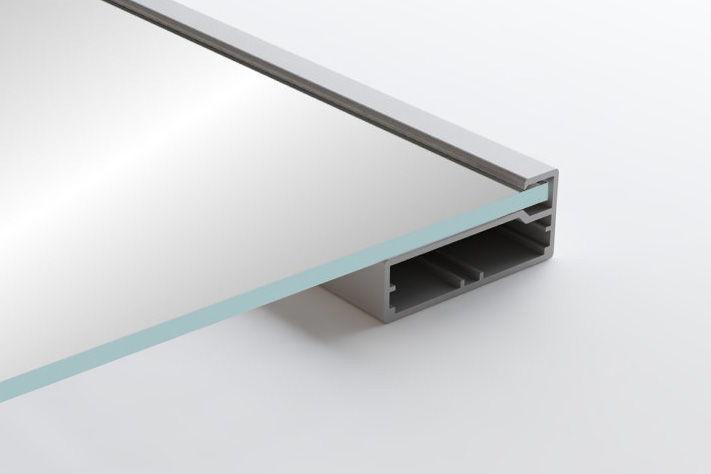

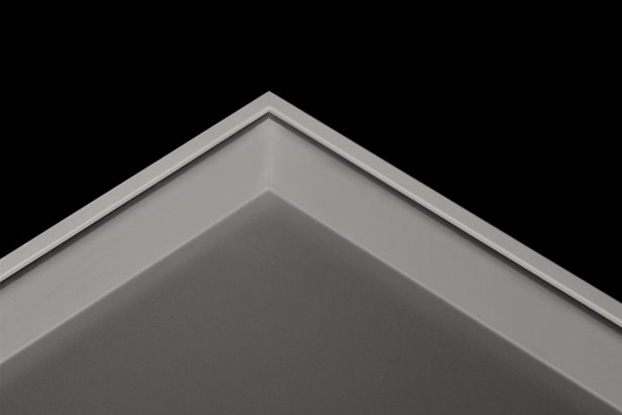

Modena 077: Ideal for Larger Cabinets and Closets, Modena Features a Wider Frame and a Slightly Larger Reveal
Compared to the Verona
![]()
- Insert Thickness: Available in thicknesses including 5/32″ (4 mm)
- Customizable Installation: Tailored to exact dimensions and specifications for easy setup.
- Flexible Hardware Options: Standard or custom hinge and handle borings available upon request.
- Interior Design Solutions: Ideal for kitchens, offices, bathrooms, and other interior spaces.
- Maximum Height: 98" (2489mm)
Anode options
Natural Aluminum
Brushed Stainless Steel
Graphite

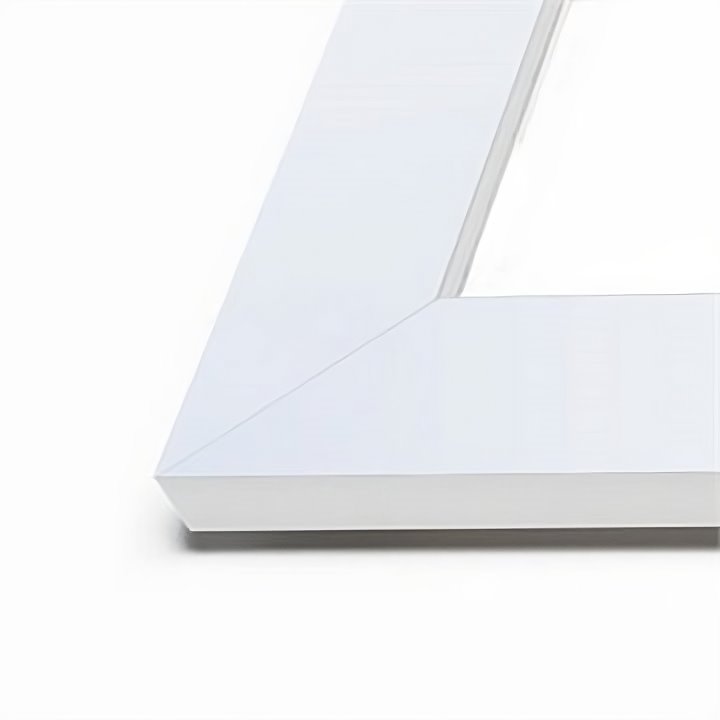

Matte White
Black Matte
Hardware Options
Hinges
- Applicable opening mechanisms for Narrow frame type.
- Standard Hinge hole diameter 26mm.
- Minimum distance from frame edge to the center of the hinge hole is 2 3/4" (70mm).
- We drill for standard hinge borings or custom hinge borings according to specifications.
- Minimum distance from frame edge to the center of the hinge hole is 3.15” (80mm).
- Standard distance from frame edge to the center of the hinge hole is 4” (102mm).
- Standard Hinge hole diameter 35mm.
Lift Up Systems
- Blum: Aventos HF, Aventos HS, Aventos HL, Aventos HK, Aventos HK-S. We drill for any Blum Aventos system. Aventos system not included.
- Hydraulic Lift Up System.
Handles
- Drilling available upon request.
- Use your own hardware or check out our handle options.
- Could be cut to desired length.
Sliding Hardware
- Sliding Systems H27AL.
- Sturdy system.
- Aluminum rails and tracks cut to your desire length.
