Backlit LED Mirrors
Catalog
Technical Details
Installation Instructions

Add dimension to any space with this essential wall Round mirror, featuring a classic round in aluminum black frame frame. This product has a protection rating of IP44, which makes it suitable for use in bathrooms and damp locations. Aluminum profile Rimini in black matte finish.

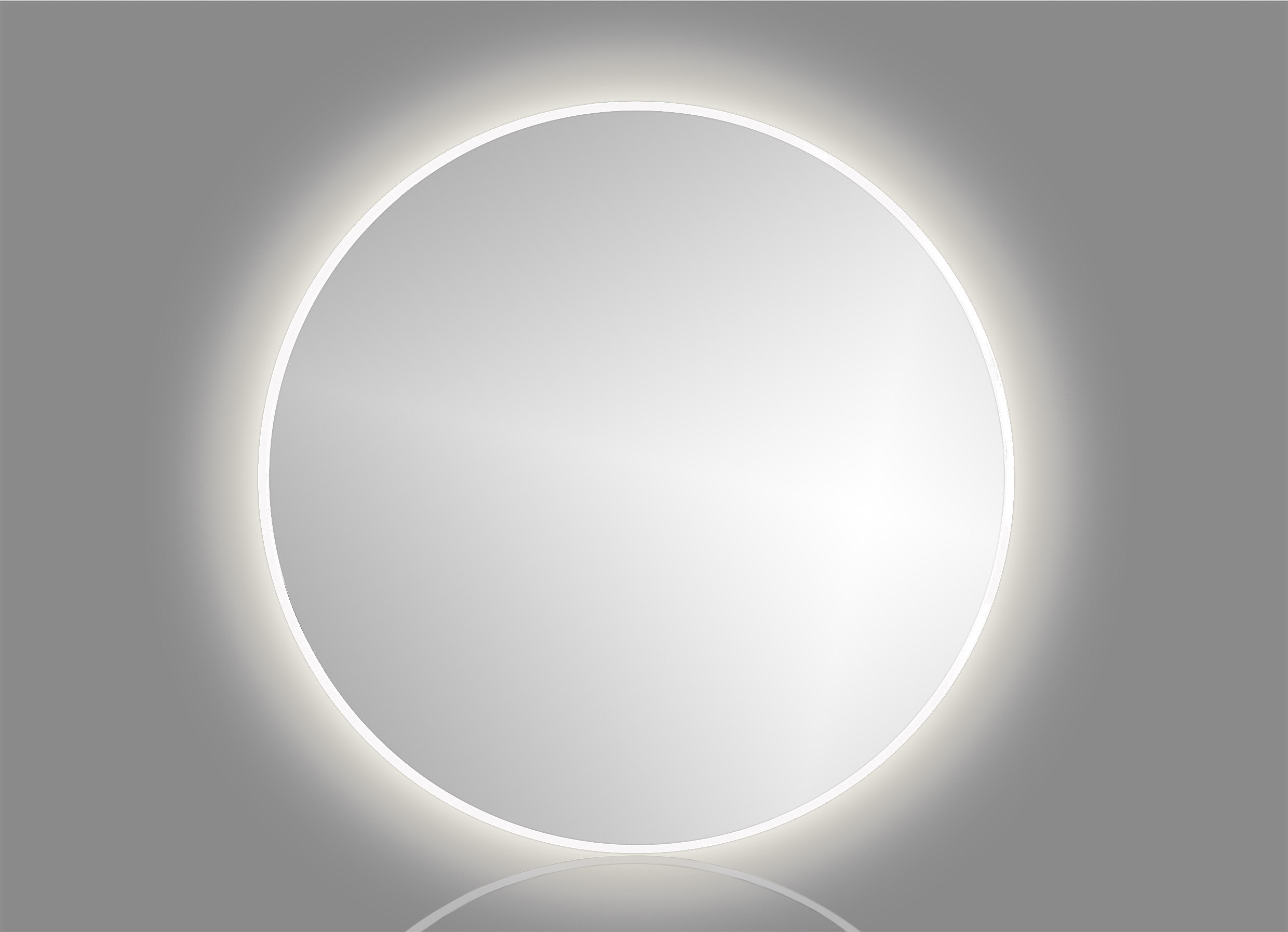

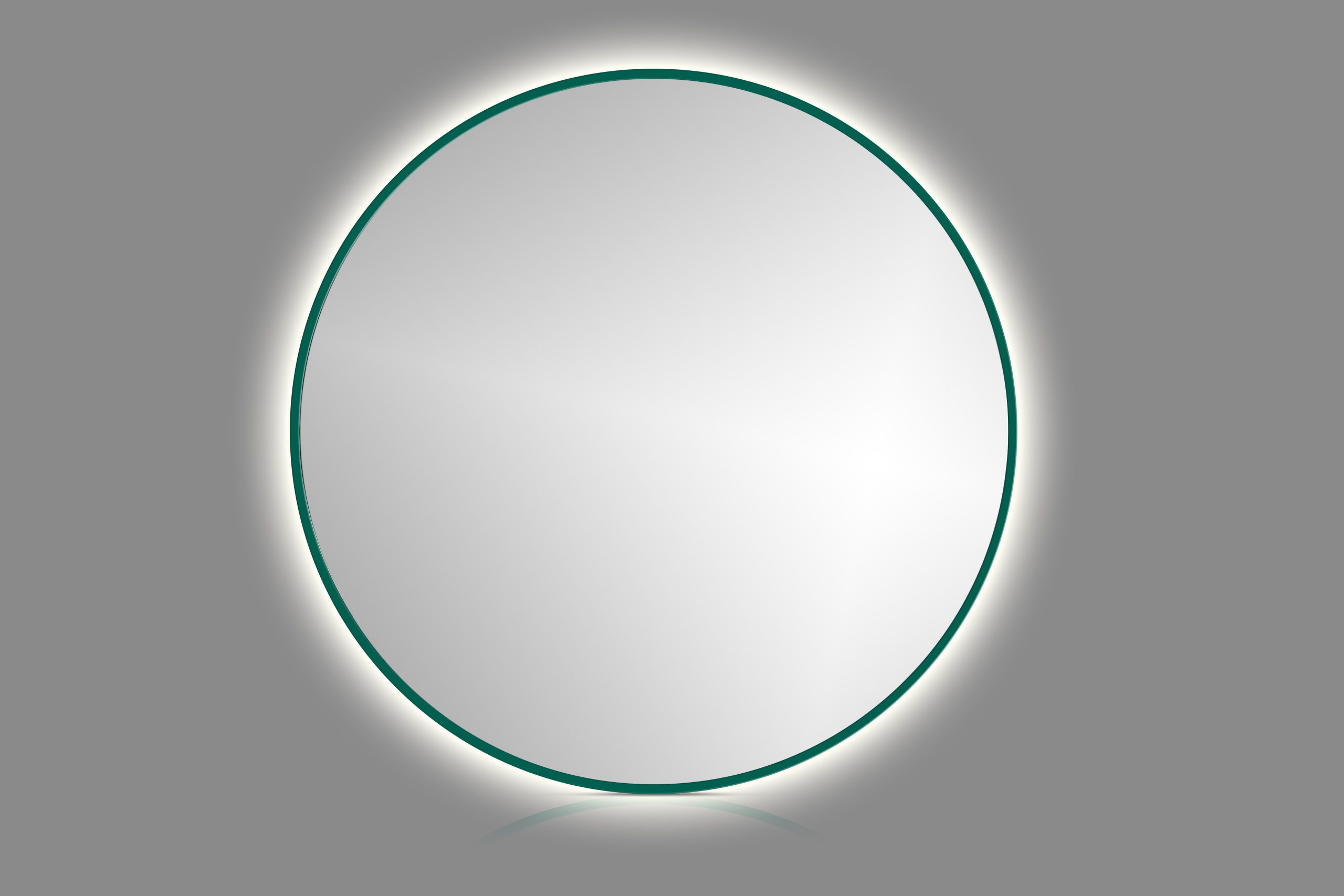

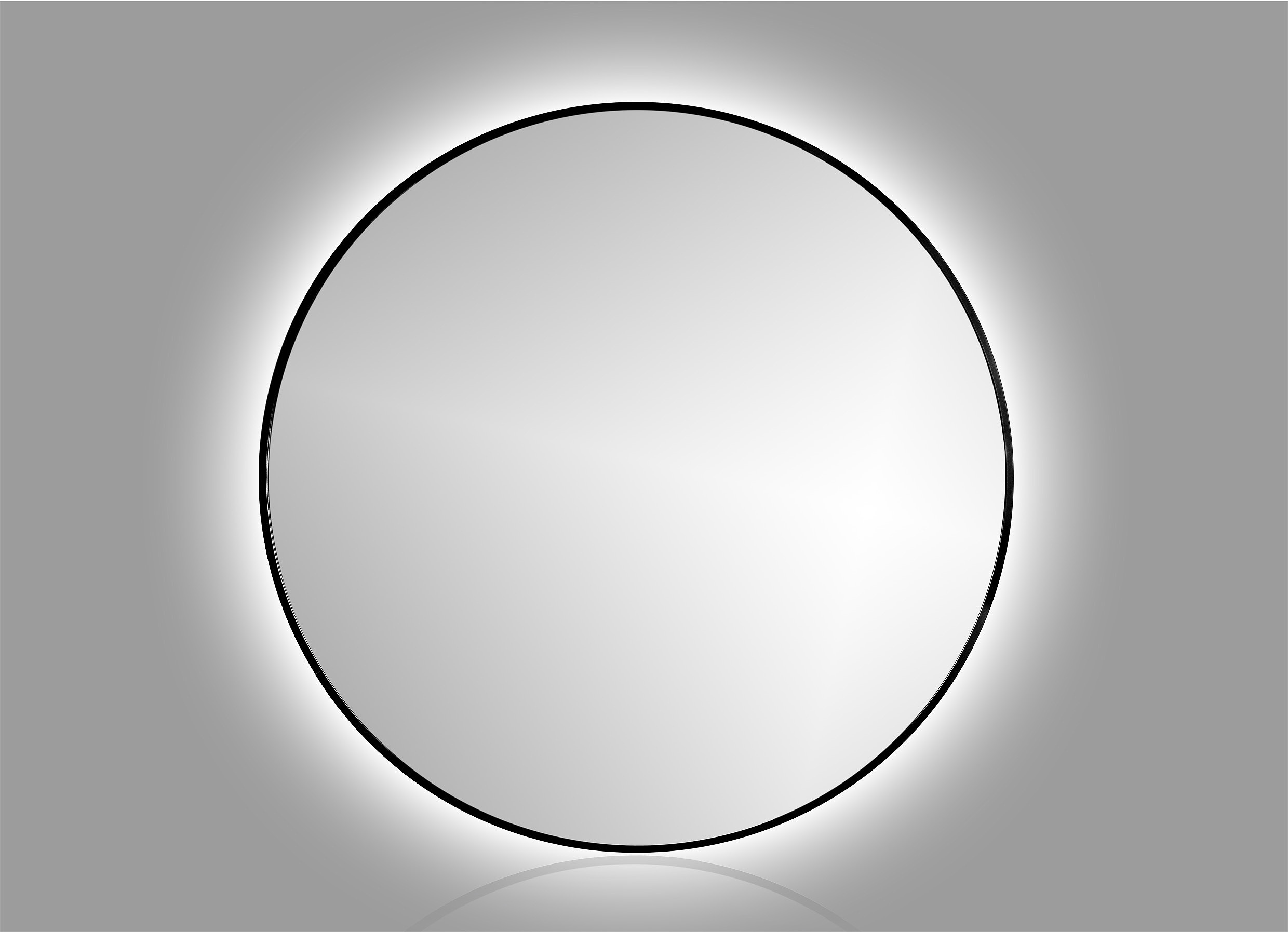

Round Line 1 Round Line 2 Round Line 3 Round Line 4 Round Line 5

Standard Dimensions

23.6" x 23.6" 600 mm x 600 mm
31.5" x 31.5" 800 mm x 800 mm
39.4" x 39.4" 1000 mm x 1000 mm

Frame Colors

Black Matte
Black Matte
Green
Green
Gold Matte
Gold Matte
Powder Coated RAL9003 Glossy
Powder Coated RAL9003 Glossy
Powder Coated RAL9003 Matte
Powder Coated RAL9003 Matte
Powder Coated Brown RAL 8014
Powder Coated Brown RAL 8014

Technical Details

Click Here to expand

Glass Specifications

  • Thickness: 5/32" (4 mm)
  • High-quality mirror glass

Installation

  • LED drivers are attached to the back of the mirror.
  • Alternatively they can be detached upon request, shipping separately from the mirror.

Power Consumption

  • 7.44 Watt/meter (3.2 Ft) of LED strip
  • 18 W Power Supply

Force and Voltage

  • 12 V Output
  • 1.5 A Force

LED Density and Life

  • 120 LEDs/meter (3.2 Ft)
  • 50,000 - 60,000 Hours

Available Options

  • On/OFF switch available upon request
Mirror Distance From Wall

Mirror Distance From Wall
1.18" (30mm)

LED Type

LED Type
2835 SMD LED Strip

Power Supply

Power Supply
100-240V AC to 12V DC Adapter

Color Rendering Index

Color Rendering Index (CRI)
80+

CE

Certification
CE

IP44

Protection Rating
IP44
