LED Mirror
Double Line

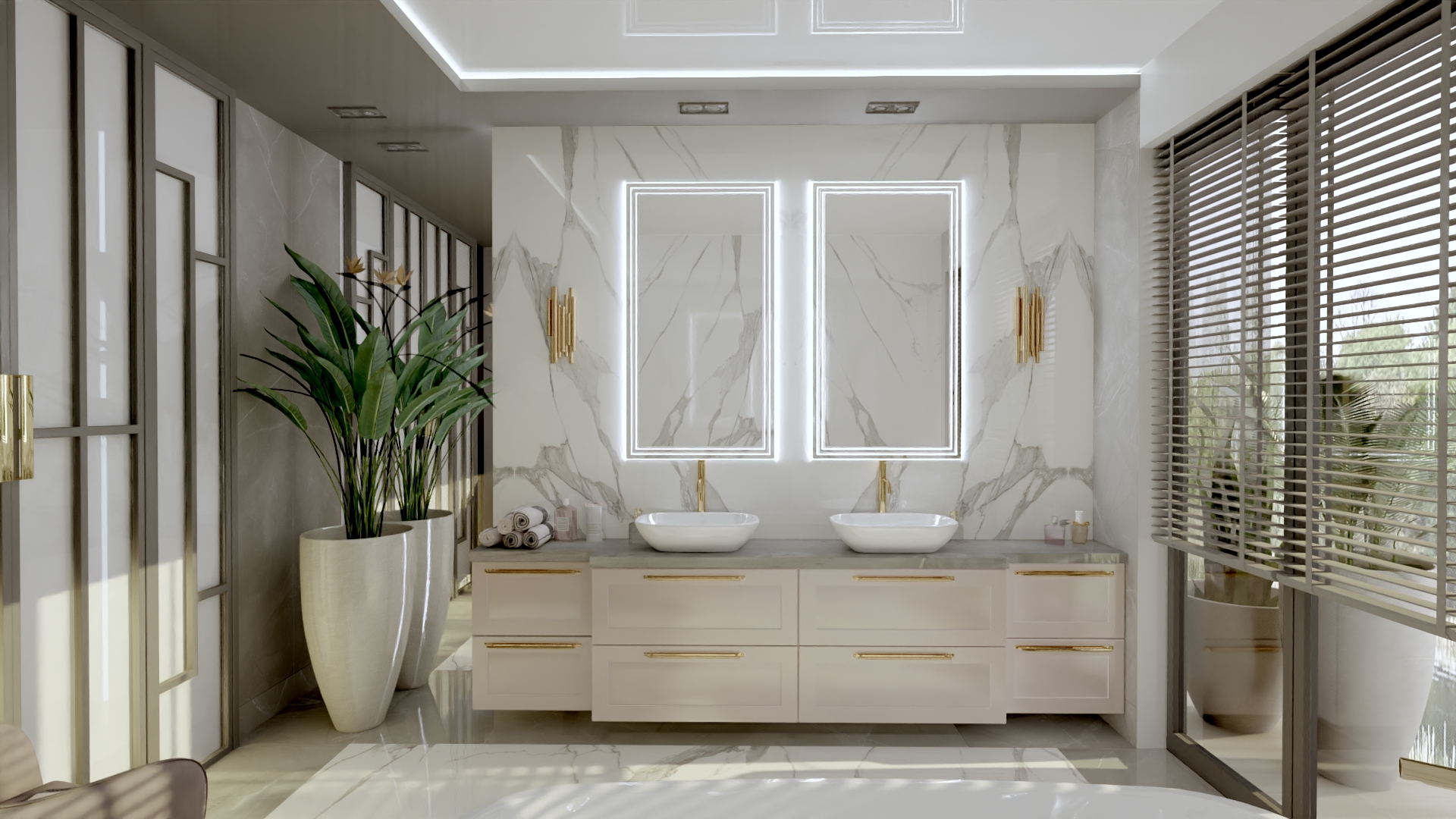

A simple, elegant mirror with soft LED lighting on both sides. The hidden aluminum
frame keeps the design light and clean, with no visible structure from the front.
Timeless, minimal, and made to brighten your space perfectly.
For portrait installation, please request at the time of order.
Timeless, minimal, and made to brighten your space perfectly.
For portrait installation, please request at the time of order.
Standard Dimensions
25.6" x 23.6"
650 mm x 600 mm
25.6" x 31.5"
650 mm x 800 mm
25.6" x 39.4"
650 mm x 1000 mm
25.6" x 47.2"
650 mm x 1200 mm
Specifications ⌄
- Glass thickness: 5/32" (4mm)
- Distance from the mirror to the wall: 1 3/16" (30mm)
- Sandblasting width: 2 x 0.5" (12mm)
- Available with a touch switch
Installation ⌄
- LED drivers are attached to the back of the mirror.
- Alternatively, they can be detached upon request, shipping separately.
Power Consumption ⌄
- 7.44 Watt/meter (3.2ft) of LED strip
- 18 W Power Supply
Force and Voltage ⌄
- 12 V output
- 1.5 A Force
LED Density and Life ⌄
- 120 LEDs/meter (3.2ft)
- 30,000 hours
LED Light Tones ⌄
Warm
Natural
Cold
Certifications ⌄
Features ⌄
Protective Class 2
Vertical Horizontal Mounting
LED Life of 30,000 hours
1200 lumens per 1 meter
Indoor use only

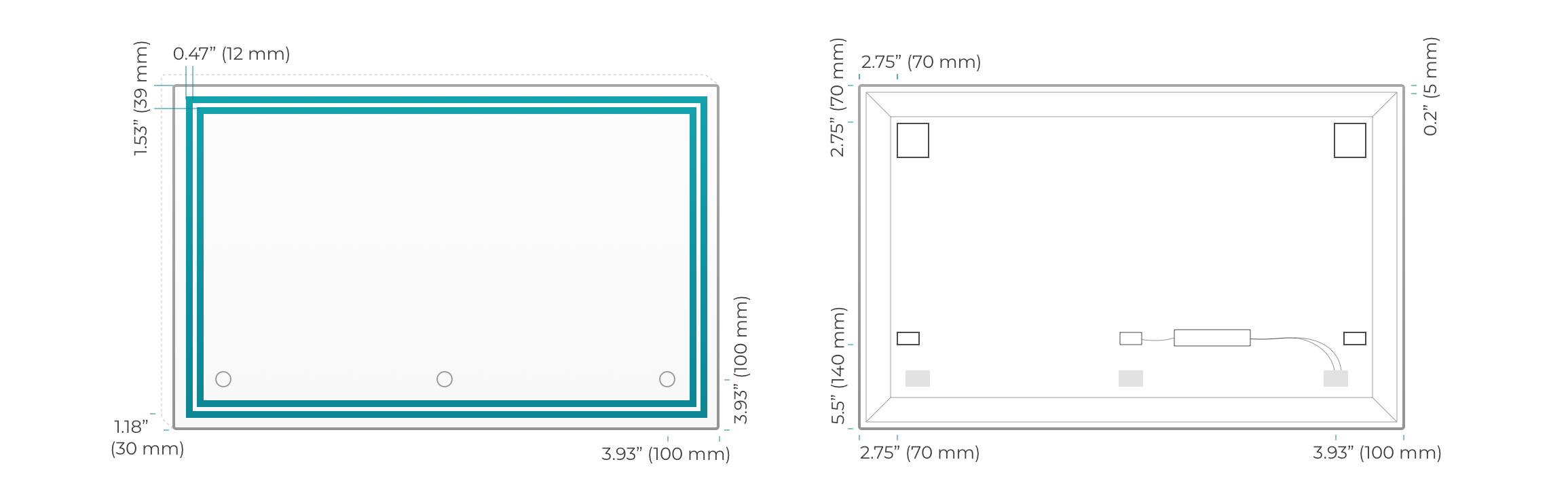

Technical Drawing
×
