LED Mirror

Gap Line Premium

The Gap Line LED mirror blends stylish classic design with modern sophistication. Symmetric lines gracefully frame the mirror within an anodized or lacquered aluminum frame, creating a well-balanced and elegant appearance.

The mirror pane is illuminated from inside the frame, evenly diffusing indirect light with a subtle radiance. This creates a sophisticated ambient effect that enhances any bathroom or living space.
Colors
Natural Aluminum
Black Matte
RAL 9003
Standard Dimensions
25.6" x 23.6"
650 mm x 600 mm
25.6" x 31.5"
650 mm x 800 mm
25.6" x 39.4"
650 mm x 1000 mm
25.6" x 47.2"
650 mm x 1200 mm
Specifications ⌄
  • Glass thickness: 5/32" (4mm)
  • Distance from the mirror to the wall: 1 3/8" (35mm)
  • Sandblasting width: 13/16" (20mm)
  • Available with a touch switch
Installation ⌄
  • LED drivers are attached to the back of the mirror.
  • Alternatively, they can be detached upon request, shipping separately.
Power Consumption ⌄
  • 7.44 Watt/meter (3.2ft) of LED strip
  • 18 W Power Supply
Force and Voltage ⌄
  • 12 V output
  • 1.5 A Force
LED Density and Life ⌄
  • 120 LEDs/meter (3.2ft)
  • 30,000 hours
LED Light Tones ⌄
Warm Warm
Natural Natural
Cold Cold
Certifications ⌄
CE Marking Certification
IP44 Certification
Features ⌄
Protective Class 2 Protective Class 2
Vertical Horizontal Mounting Vertical Horizontal Mounting
LED Life of 30,000 hours LED Life of 30,000 hours
1200 lumens per 1 meter 1200 lumens per 1 meter
Aluminum frame around Aluminum frame around
Indoor use only Indoor use only

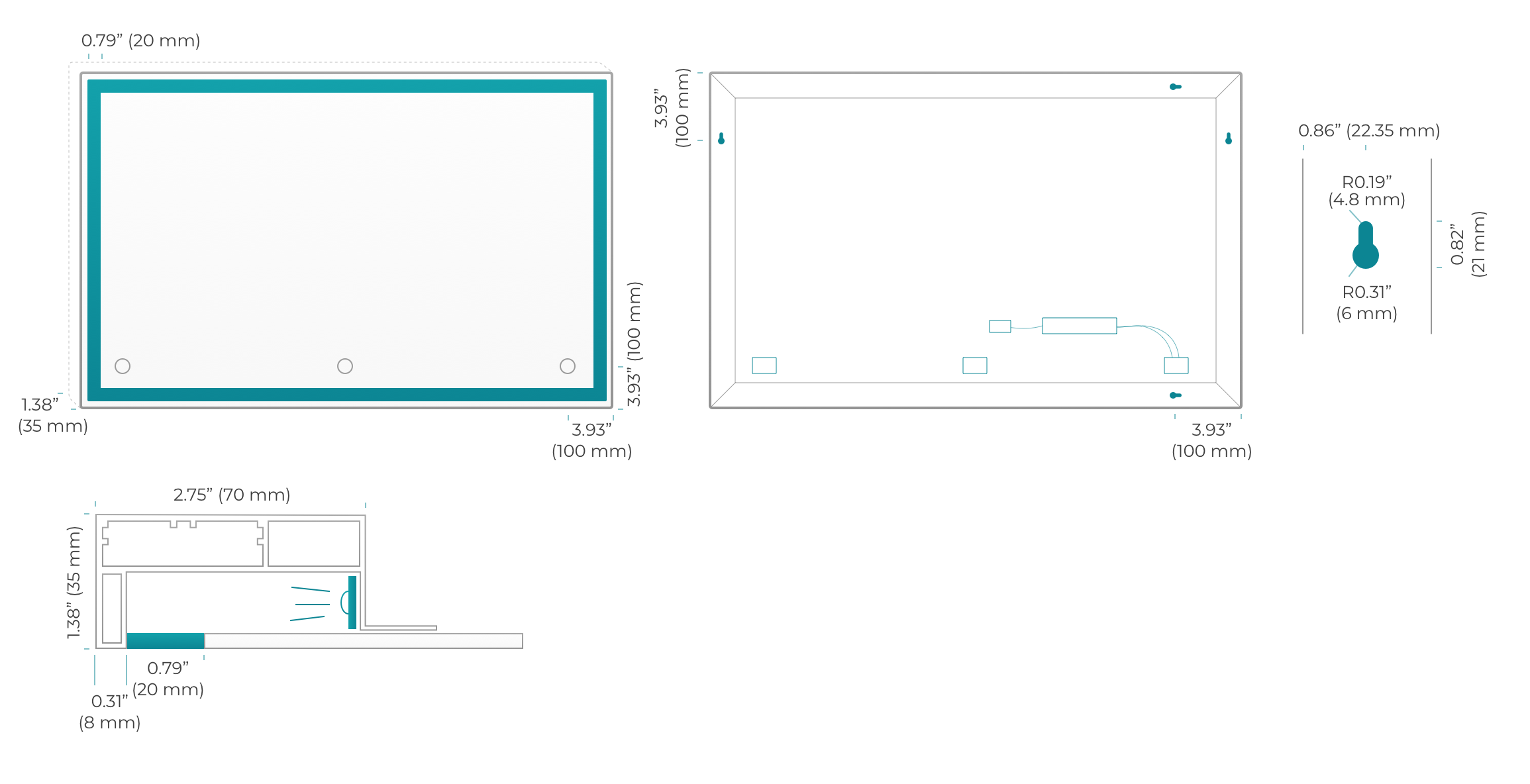

Technical Drawing
Gap Line Technical Drawing
