Square Line is a unique mirror in a rectangular, carefully sanded glass gives lightness
to any interior. The model with a very subtle, timeless design, attracts with its simplicity
and, at the same time, original light decorativeness.The light is emitted from the
border, creating a charming atmosphere.
This product has a protection rating of IP44, which makes it suitable for use in bathrooms
and damp locations. It is so versatile that it can be mounted portrait or landscape to suit
your basin choice. All four sides of the frame (on back) are pre-drilled for easy hanging.
This can also be used as a hinged door (for medicine cabinet).

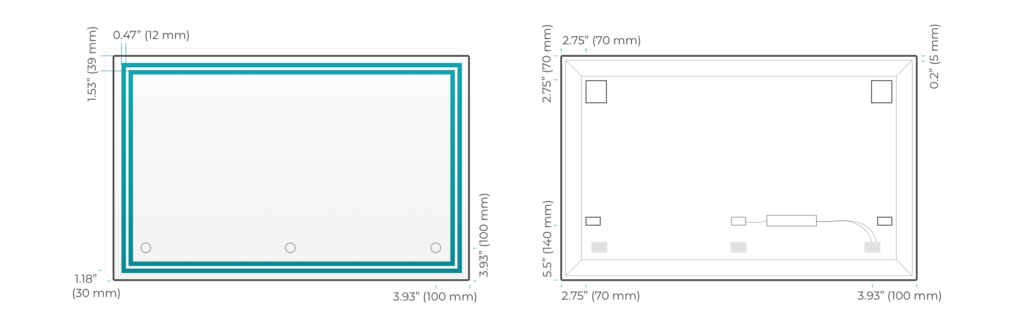

Standard Dimensions
23.6" x 23.6"
600 mm x 600 mm
31.5" x 31.5"
800 mm x 800 mm
31.5" x 23.6"
800 mm x 600 mm
Specifications ⌄
- Glass thickness: 5/32" (4mm)
- Distance from the mirror to the wall: 1" (25mm)
- Sandblasting width: 1" (25mm)
- Available with a touch switch
Installation ⌄
- LED drivers are attached to the back of the mirror.
- Alternatively, they can be detached upon request, shipping separately.
Power Consumption ⌄
- 7.44 Watt/meter (3.2ft) of LED strip
- 18 W Power Supply
Force and Voltage ⌄
LED Density and Life ⌄
- 120 LEDs/meter (3.2ft)
- 30,000 hours
LED Light Tones ⌄
Certifications ⌄
Features ⌄
Protective Class 2
Vertical Horizontal Mounting
LED Life of 30,000 hours
1200 lumens per 1 meter
Aluminum frame around
Indoor use only
