LED Mirror
Smart Line

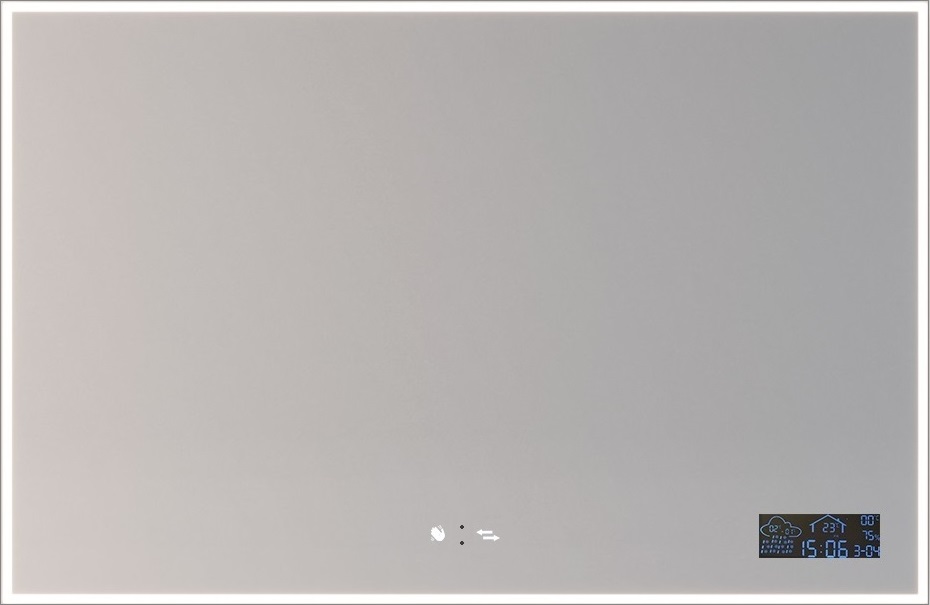

This rectangular mirror features an integrated smart display with hand-motion switch control.
The built-in display shows indoor and outdoor temperature (in Celsius or Fahrenheit), live weather
information via Wi-Fi, date, time, and air humidity—keeping you informed while you prepare for the day.

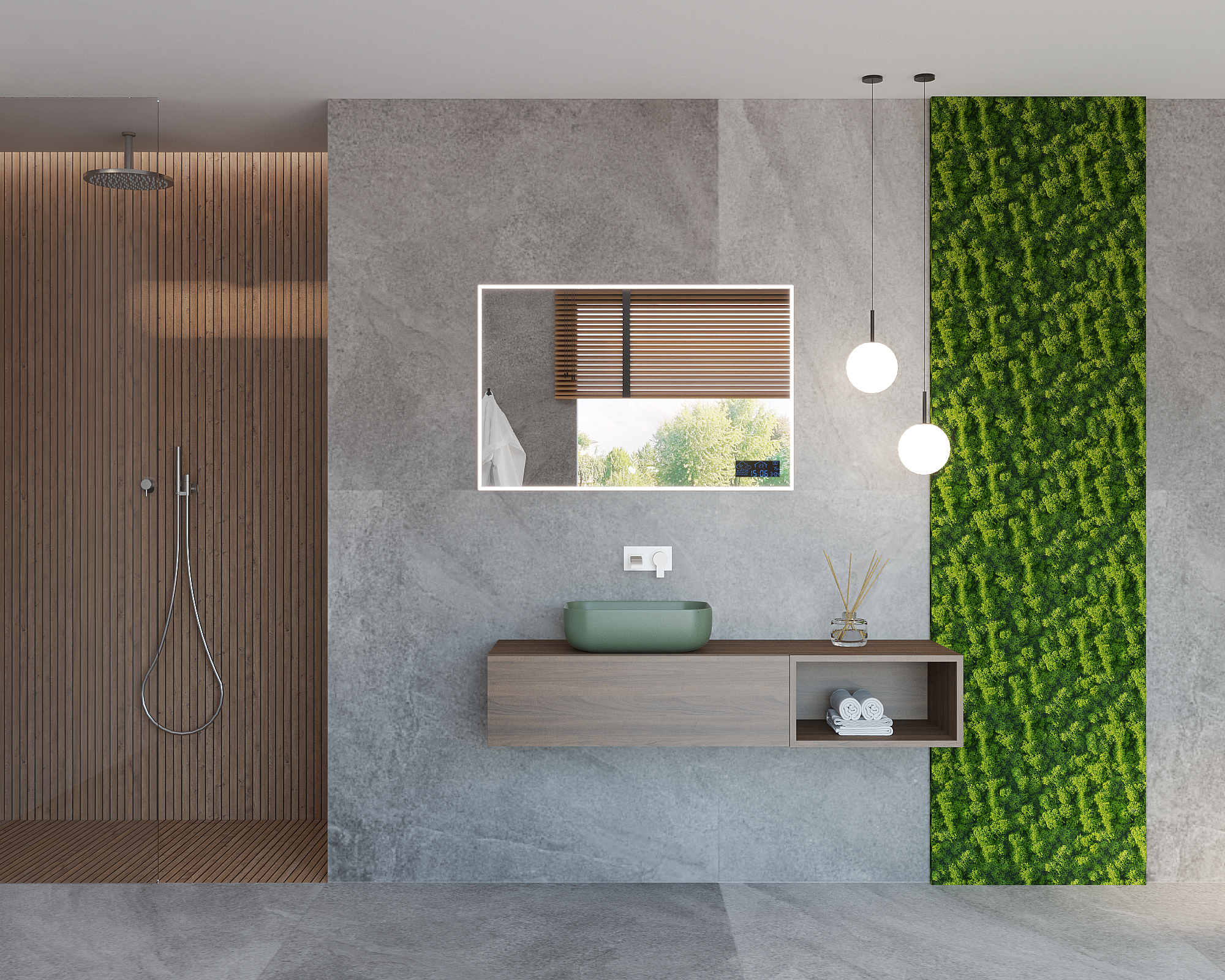

The mirror can be mounted in portrait or landscape orientation to suit your bathroom layout. With an IP44 protection rating, it's perfect for bathrooms and damp locations. All four sides of the frame are pre-drilled for easy installation.
The mirror can be mounted in portrait or landscape orientation to suit your bathroom layout. With an IP44 protection rating, it's perfect for bathrooms and damp locations. All four sides of the frame are pre-drilled for easy installation.
Colors
Brushed Aluminum
Standard Dimensions
25.6" x 23.6"
650 mm x 600 mm
25.6" x 31.5"
650 mm x 800 mm
39.4" x 39.4"
650 mm x 1000 mm
39.4" x 47.2"
650 mm x 1200 mm
Specifications ⌄
- Glass thickness: 5/32" (4mm)
- Distance from the mirror to the wall: 1 3/16" (30mm)
- Sandblasting width: 5/16" (8mm)
Installation ⌄
- LED drivers are attached to the back of the mirror.
- Alternatively, they can be detached upon request, shipping separately.
Power Consumption ⌄
- 7.44 Watt/meter (3.2ft) of LED strip
- 18 W Power Supply
Force and Voltage ⌄
- 12 V output
- 1.5 A Force
LED Density and Life ⌄
- 120 LEDs/meter (3.2ft)
- 30,000 hours
LED Light Tones ⌄
Warm
Natural
Cold
Certifications ⌄
Features ⌄
Protective Class 2
Vertical Horizontal Mounting
LED Life of 30,000 hours
1200 lumens per 1 meter
Aluminum frame around
Indoor use only
Technical Drawing
×
